Calcium Sulphate Raised Floor System

PVC coated calcium sulphate raised access floor

Date:2014-09-25 14:06:39  Visit:

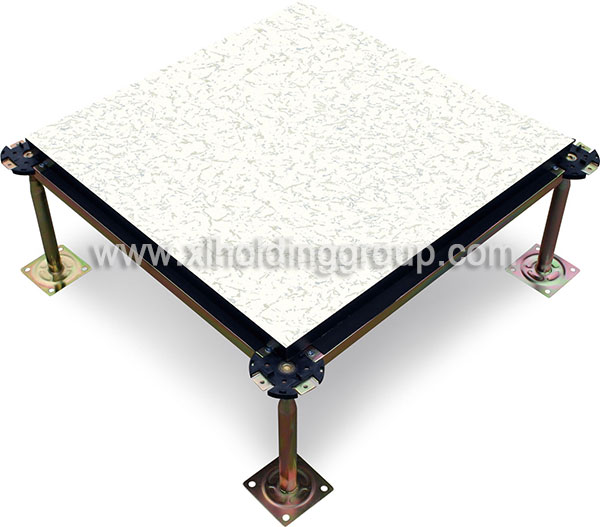

PVC coated calcium sulphate raised access floor

Product Brief :

1. Prevent static validly; fireproof, antiskid, soundproof; dustproof,

electromagnetic shielding, environment friendly and innoxious;

2. Strong wearability, non-bubble, non-deguming;

3. Strong support frame, pressurization;

4. High grade, beautiful appearance, easy to fix, convenient for wires;

5. Recyclable, convenient removing, cost saving, long performance life


Product Type : FS800 ~ FS1500

Details


Description


1. Environment friendly calcium sulphate board

2. Anti-static, High dimensional precision, strong loading ability and shockproof, fireproof

3. Adjustable height for pedestal, assembly agility, large wire, good exchangeability.

4. Outlet mating. Elegant appearance for paving wildly brand top tiles.

5. Being stable performance in humidity  temperature


Structure

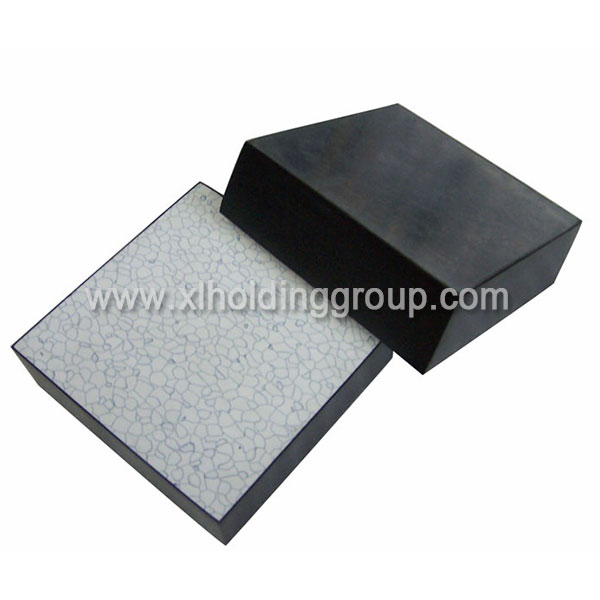

1. Panel-calcium sulphate board, PVC/ABS corvered four edges, steel/aluminium on the bottom plate, wildly brand top tiles is PVC

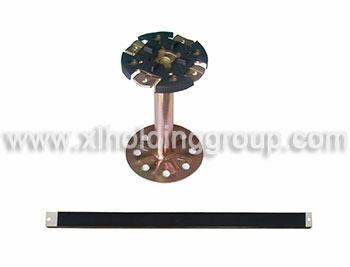

2. Accessories-die casting steel structure pedestal plastic gasket on top, height could be

70mm--1500mm, with or without square tube stringer steady connect the system





Application


Wide range of the application such as bank, military, high grade computer room top grade office, and occasions which required high loading capacity


Technical Specification



International

Type

SIZE

Concentrated  Load

Impact  Load (N)

Ultimate  Load (N)

Uniform Load (N/M2)

Rolling  load (N)

LB

N

KG

10 times

10000  times

FS800

600*600

≥800

≥3350

≥363

≥536

≥11250

≥16100

3560

2670

FS1000

600*600

≥1000

≥4550

≥450

≥670

≥13350

≥23000

4450

3560

FS1250

600*600

≥1250

≥5560

≥567

≥780

≥16680

≥33000

5560

4450

FS1500

600*600

≥1500

≥6675

≥670

≥1005

≥19892

≥34500

6675

5340


* panel thickness available from 25mm to 38mm


Standard Pedestal SPEC

FFH(mm)

tube iameter(mm)

adjustment+(mm)

adjustment-(mm)

≦600

ф25

25

25

700~900

ф32

25

25

1000~1500

ф42

25

25

Other height could be customized.

Standard Stringer SPEC: 535x20x30mm
