New Panel Without Edge Trim

XL new steel raised floor without edge trim collects the advantages of the first generation steel raised fioor without edge and with microedge. We develop the new generation steel raised floor without edge through deep search, which can solve the problems of weak edge loading of traditional steel raised floor at large range. This new type has perfect flatness and elegant appearance.

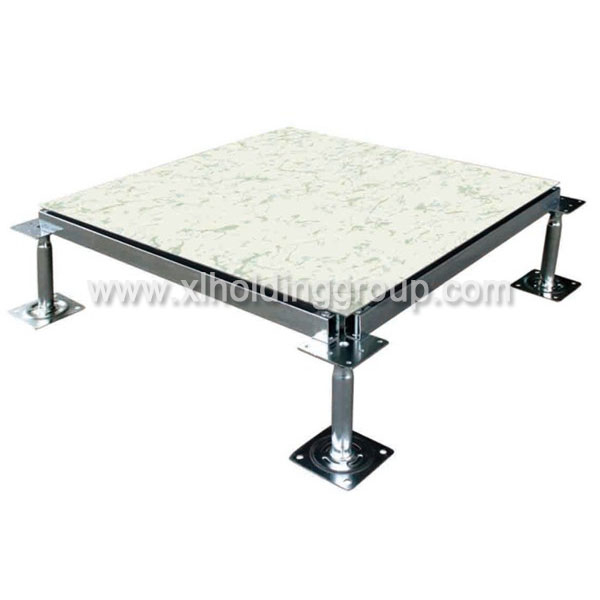

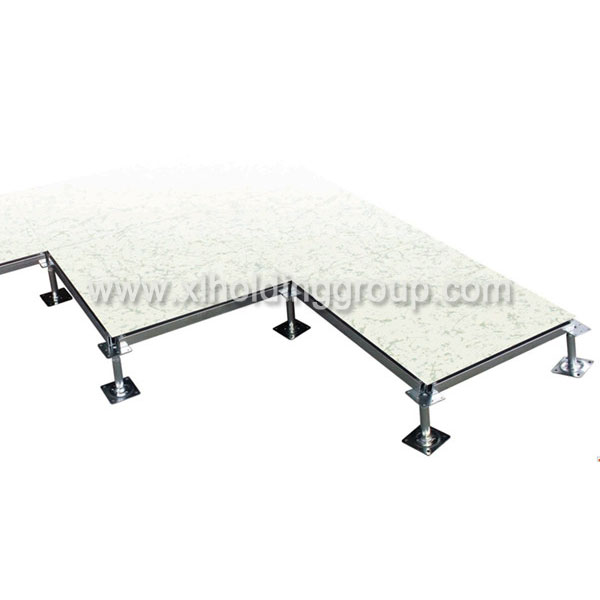

Cementitious Infill Steel Raised Access Floor System(Finished Type)

Introduction of Products

Full steel structure, high-quality cement in filled;

Top finish tile could be HPL, PVC, ceramics and granite;

Unique XL "cross strengthening rib" patent design.

The Advantages of Cement-infilled Steel Raised Floor
Concentrated load XL Company patent design "cross strengthening rib" can improve 10-20% loading ability of each floor.

Edge load
The edge load is the key data which can inspect the quality of the raised floor. XL second wide-edge steel raised floor with cross strengthening rib has conquered the technical difficulties, make the edge load higher than the center load to solve the edge warping caused by uneven load effectively.

Glue and trim
XL company adopt the gule from Sino-foreign joint venture. When the trim is glued then adds 502 glue, it is hard to drop.

Appearance and size

Steel raised floor of XL company has the patent design "cross strengthening rib", reshaping many times and high flatness which is less than 0.4mm and be superior to similar factories 10-20%.

Floor welding art
XL company adopt high-end digital-controlled multipoint welding machine, so it welds evenly and the structure of top and bottom steel will be strong.

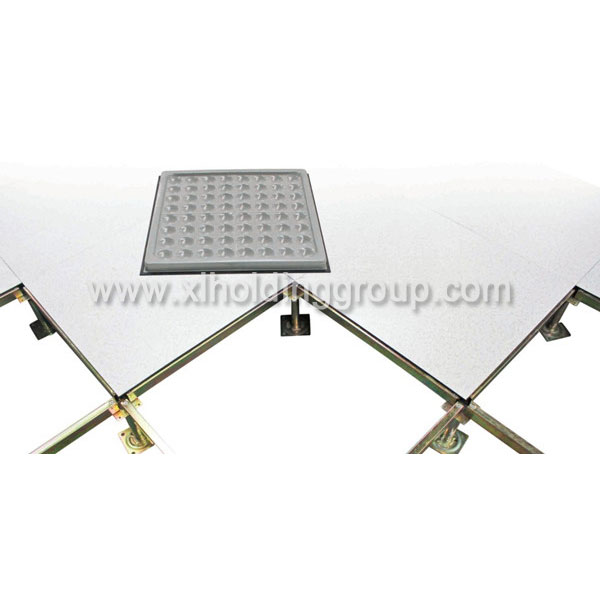

Patent-type Activities Flooring

The newest "cross strengthening rib" structural design on the back of this raised access floor in all steel. This cross strengthening rib in the frame of floor Soleplate is punched forming at one time. "XL" Company succeed in researching this design and applying patent in 2006. This floor is applied to computer room or equipment room which requires higher load bearing in particular. "XL" brand be printed on the side of the floor for customer identification. Compare with uniform product, this utility model structural design is more advanced in both appearance and loading. Ingenuity but a little cost. Especially in the loading, there is more 10~20% loading than uniformity for each floor. Providing customen better quality guarantee, then we recommend strongly this structural floor.
