Antistatic Raised Floor

Panel With “F” Edge Trim

Date:2014-09-26 08:39:59  Visit:

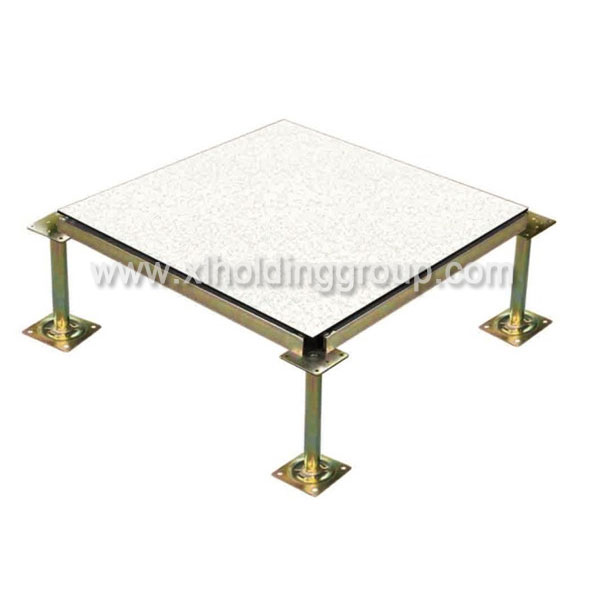

Panel With “F” Edge Trim

Product Brief :

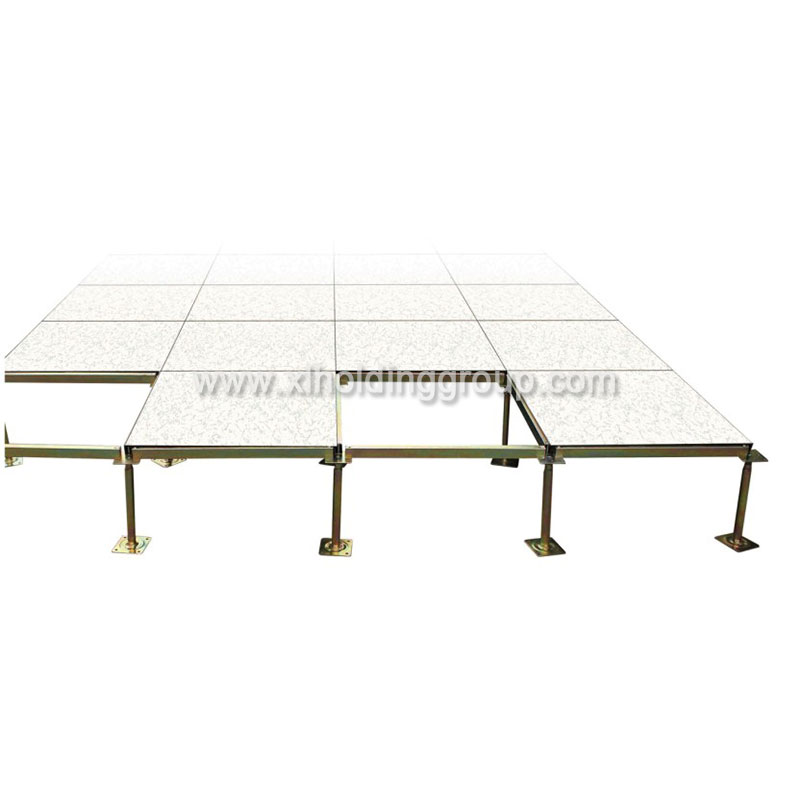

"F" edge trim is inserted between the steel panel and the surface finish. The inserted "F" edge trim is very firm and stable. Panel with "F" edge trim creates perfect installation effect with tiny seam, which can be applied to high computer room and place where requirement on antistatic or many wires.


Product Type : FS662 ~ FS2000

Details

Panel With "F" Edge Trim



"F" edge trim is inserted between the steel panel and the surface finish. The inserted "F" edge trim is very firm and stable. Panel with "F" edge trim creates perfect installation effect with tiny seam, which can be applied to high computer room and place where requirement on antistatic or many wires.

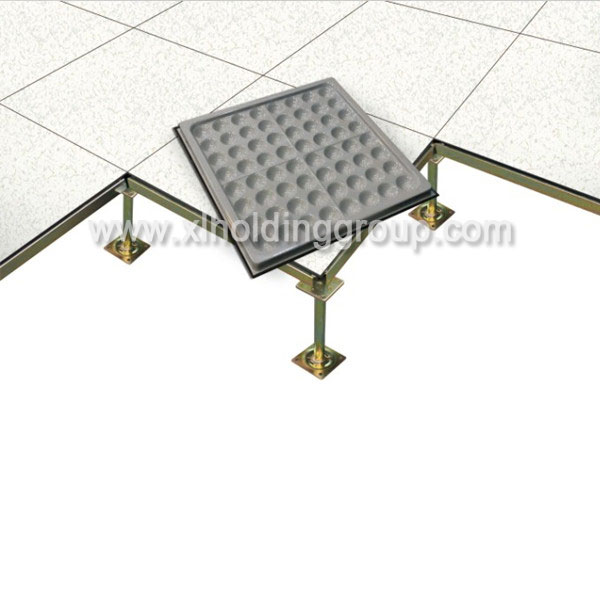

This patent floor, owe to wider edge with rib, "#"back strengthening rib and salient point structure, more loading than national standards. It is the world's leading technology of side loading for steel raised access floor and has been applied for the protection of national intellectual property.


Please identify "ATFLOR" brand, beware of imitations.


Cementitious Infill Steel Raised Access Floor System(Finished Type)
Introduction of Products
Full steel structure, high-quality cement in filled;
Top finish tile could be HPL, PVC, ceramics and granite;


The Advantages of Cement-infilled Steel Raised Floor
Concentrated load
XL Holding Group patent design, owe to wider edge with rib, "#"back strengthening rib and salient point structure, improve 10-20% loading ability of each floor.


Edge load
The edge load is the key data which can inspect the quality of the raised floor. XL second wide-edge steel raised floor with "#"back strengthening rib and salient point structure, has conquered the technical difficulties, make the edge load higher than the center load to solve the edge warping caused by uneven load effectively.


Glue and trim
XL Holding Group adopt the gule from Sino-foreign joint venture.  When the trim is glued then adds 502 glue, it is hard to drop.


Appearance and size
Steel raised floor of XL Holding Group has the patent design wide-edge steel raised floor with "#"back strengthening rib and salient point structure, reshaping many times and high flatness which is less than 0.4mm and be superior to similar factories 10-20%.


Floor welding art
XL Holding Group adopt high-end digital-controlled multipoint welding machine, so it welds evenly and the structure of top and bottom steel will be strong.


Technical Specification

International

Type

Size (mm)

Concentrated Load

Impact Load

(N)

Ultimate Load

(N)

Uniform Load

(N/M2)

Rolling load (N)

LB

N

KG

10 times

10000 times

FS662

600x600x35

≥662

≥2950

≥301

≥445

≥8850

≥1250

2946

2356

FS800

600x600x35

≥800

≥3350

≥363

≥536

≥11250

≥16100

3560

2670

FS1000

600x600x35

≥1000

≥4550

≥450

≥670

≥13350

≥23000

4450

3560

FS1250

600x600x35

≥1250

≥5560

≥567

≥780

≥16680

≥33000

5560

4450

FS1500

600x600x35

≥1500

≥6675

≥670

≥1005

≥19892

≥34500

6675

5340

FS2000

600x600x35

≥2000

≥8900

≥906

≥1340

≥26700

≥46000

8900

7120
