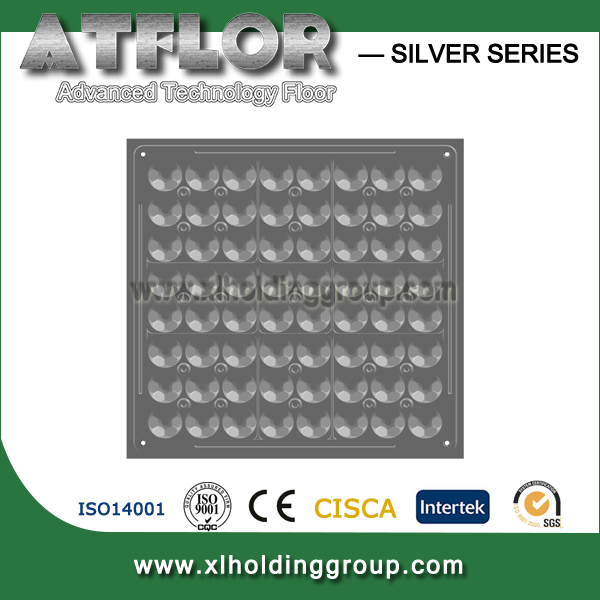

Silver New Bare Finished Steel Raised Access Floor
Details
Product Introduction
1. Steel material
Shanghai baogang hard cold rolled steel
2. Appearance and dimension
Diamond back design ,elegant appearance ,many times reshape, high dimensional precision.
3. Concentrated load
Own to wider edge with rib,”#”back strengthening rib and salient point structure, more loading than national standards.
4. Anti-corrosion ,antirust ,wear proof
imported paint , anti-corrosion ,antirust ,high wearing
5. Cement infilled
Advanced cement formula, free or cinder ,using the advanced technology infilled ,guarantee cement full and uniform .
6. Glue and edge trim
imported glue ,rolling paste tile ,regular paste with 502 strong glue ,difficult to drop.
7. Mechanical property
Advanced multipoint spot welder ,uniform bonding point strong structural capacity between upper plate and bottom plate
8. Service life
15-20years.
9. Brand identification
Printing English ”ATFLOR” on steel panel for customer identification.
.
Application
Wide range of the application such as 5 class office, Security Union Plaza, Futures Trading Building, and the place demand cabling and wiring, and the aging building floor's reform
Technical Data
International | Size(mm) | Fire Performance | Concentrated load | Impact load (N) | Ultimated load (N) | Uniform Load (N/m2) | Rolling load(N) | |||
LB | N | KG | 10 times | 100000 times | ||||||
FS800 | 600x600x35 | A | ≥800 | ≥3350 | ≥363 | ≥536 | ≥11250 | ≥16100 | 3560 | 2670 |
FS1000 | 600x600x35 | A | ≥1000 | ≥4550 | ≥450 | ≥670 | ≥13350 | ≥23000 | 4450 | 3560 |
FS1250 | 600x600x35 | A | ≥1250 | ≥5560 | ≥567 | ≥780 | ≥16680 | ≥33000 | 5560 | 4450 |
FS1500 | 600x600x35 | A | ≥1500 | ≥6675 | ≥670 | ≥1005 | ≥19892 | ≥34500 | 6675 | 5340 |
FS2000 | 600x600x35 | A | ≥2000 | ≥8900 | ≥906 | ≥1340 | ≥26700 | ≥46000 | 8900 | 7120 |

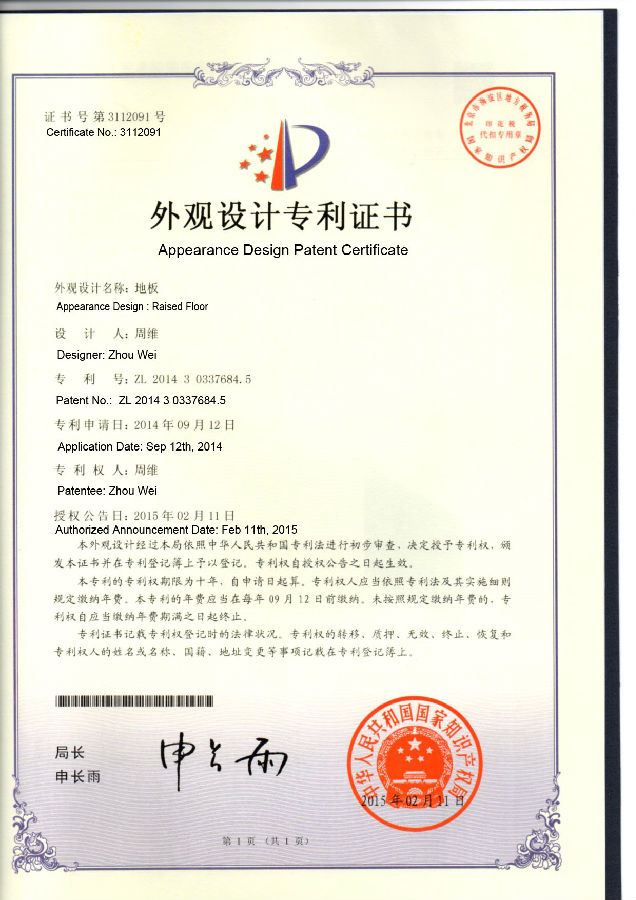

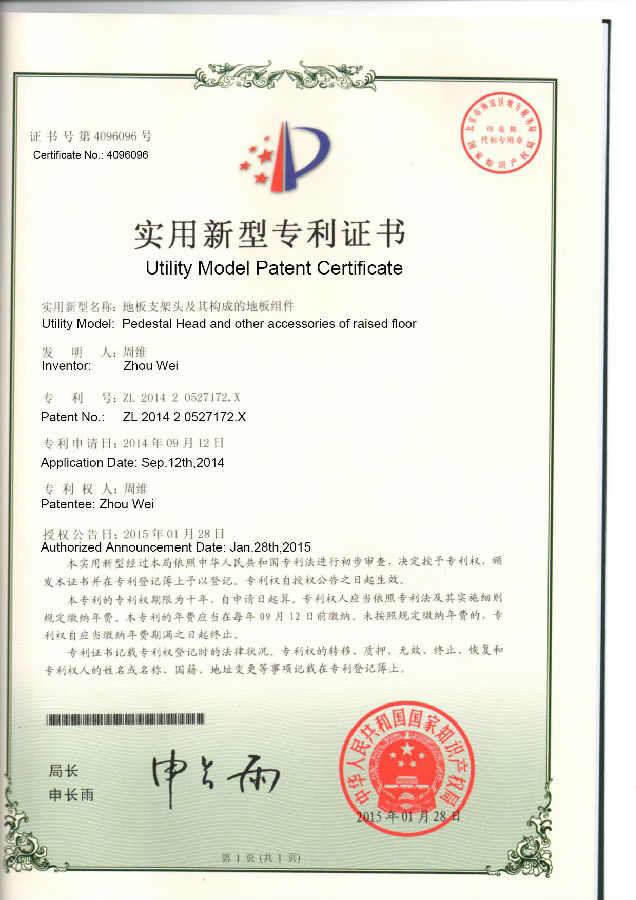

Patent certificate
 |  |
